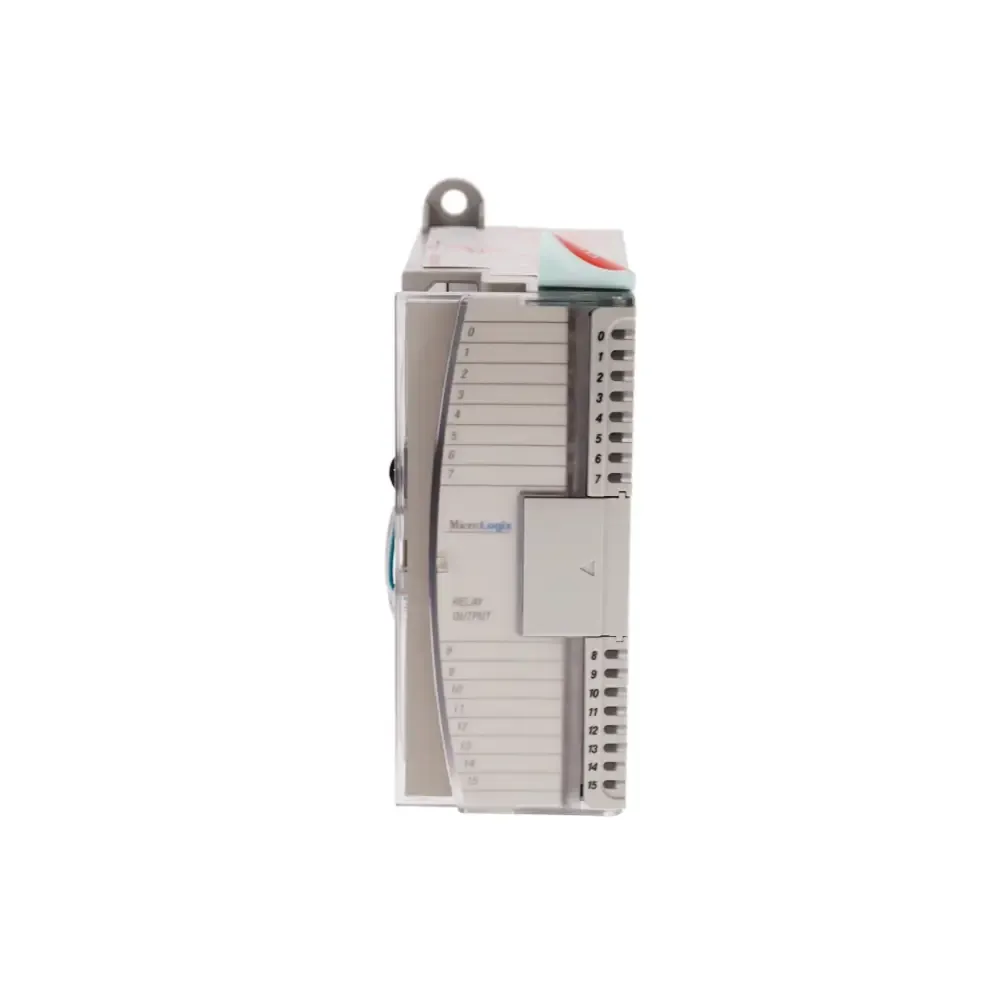

Allen-Bradley 1762-OW16 MicroLogix 16 Point Relay Output Module

Description

The Allen-Bradley 1762-OW16 is a relay output expansion module for MicroLogix controllers, designed to provide flexible output control for both AC and DC loads. It offers 16 relay contact outputs capable of switching 5–265 VAC and 5–125 VDC. Compact and versatile, the module is widely used in industrial automation systems for energizing and de-energizing electrical devices.

Technical Specifications

Information About 1762-OW16

The 1762-OW16 is part of the Allen-Bradley MicroLogix 1200 series expansion modules, compatible with MicroLogix 1100, 1200, and 1400 controllers. It contains 16 relay outputs divided into two groups of 8 channels each, with each point rated for up to 2.5 A continuous current. The module supports a maximum of 8 A per common and 16 A total per module. It features an on/off signal delay of 10 ms and is designed for inductive, resistive, and mixed loads, with surge suppressors recommended for extended relay contact life. The unit draws 140 mA at 5 VDC and 180 mA at 24 VDC from the bus, with a maximum power dissipation of 6.1 W. The module is IP20 rated, mounts via DIN rail or panel, and supports installation of up to 4, 6, or 7 modules depending on the MicroLogix controller type. With dimensions of 90 × 40.4 × 87 mm (110 mm including mounting tabs) and a weight of 0.63 lb, it is compact yet robust for industrial use. Certified for Class I, Division 2 hazardous locations, it ensures safe and reliable performance in demanding environments.

Key Features:

• Series: Part of the Allen-Bradley MicroLogix 1200 expansion module family.
• Outputs: 16 relay contact outputs, divided into 2 groups of 8.
• Voltage Range: Supports 5–265 VAC and 5–125 VDC loads.
• Current Ratings: 2.5 A per point, 8 A per common, 16 A total per module.
• Switching Delay: 10 ms ON-to-OFF and OFF-to-ON response time.
• Bus Current Draw: 140 mA at 5 VDC and 180 mA at 24 VDC.
• Power Dissipation: Maximum 6.1 W.
• Protection: Recommended surge suppressors for inductive loads; IP20 enclosure.
• Mounting: DIN rail or panel installation for flexible integration.
• Certification: Approved for Class I, Division 2 hazardous locations.

The 1762-OW16 delivers reliable and flexible relay output capability for MicroLogix-based automation systems.

Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
