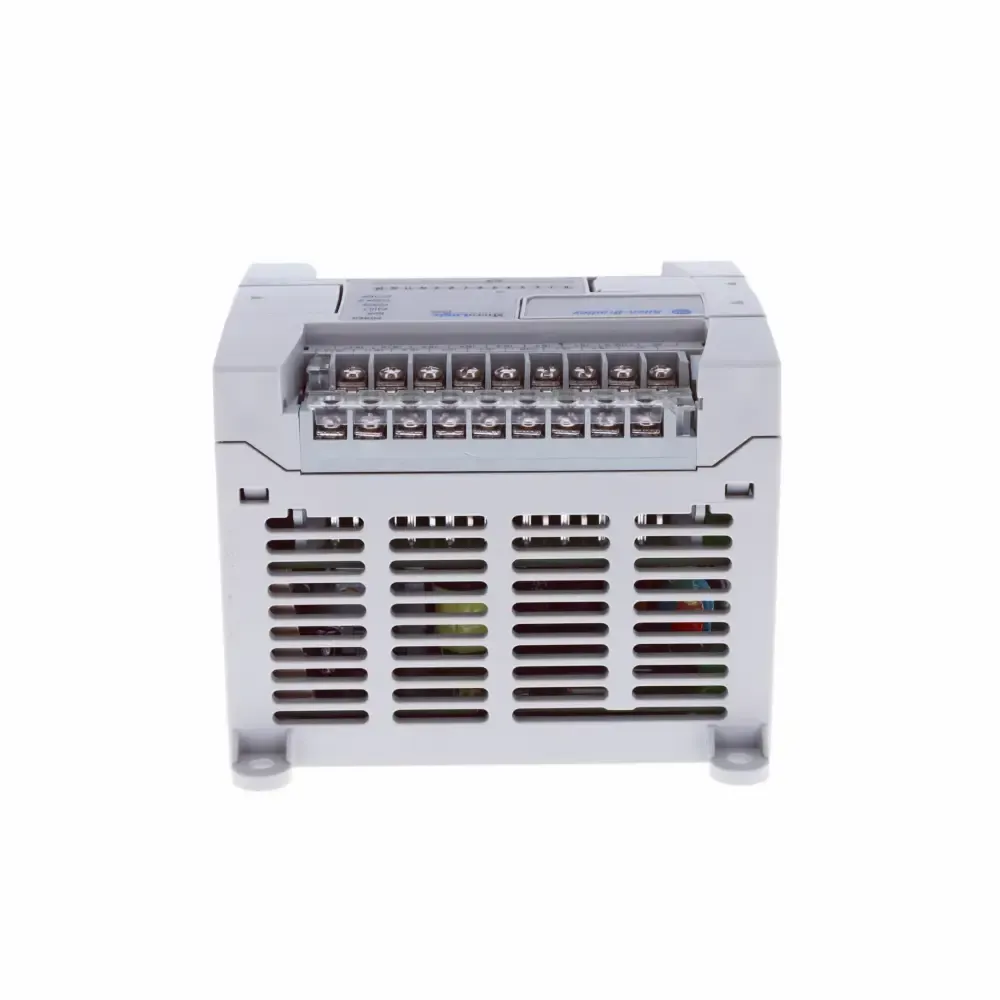

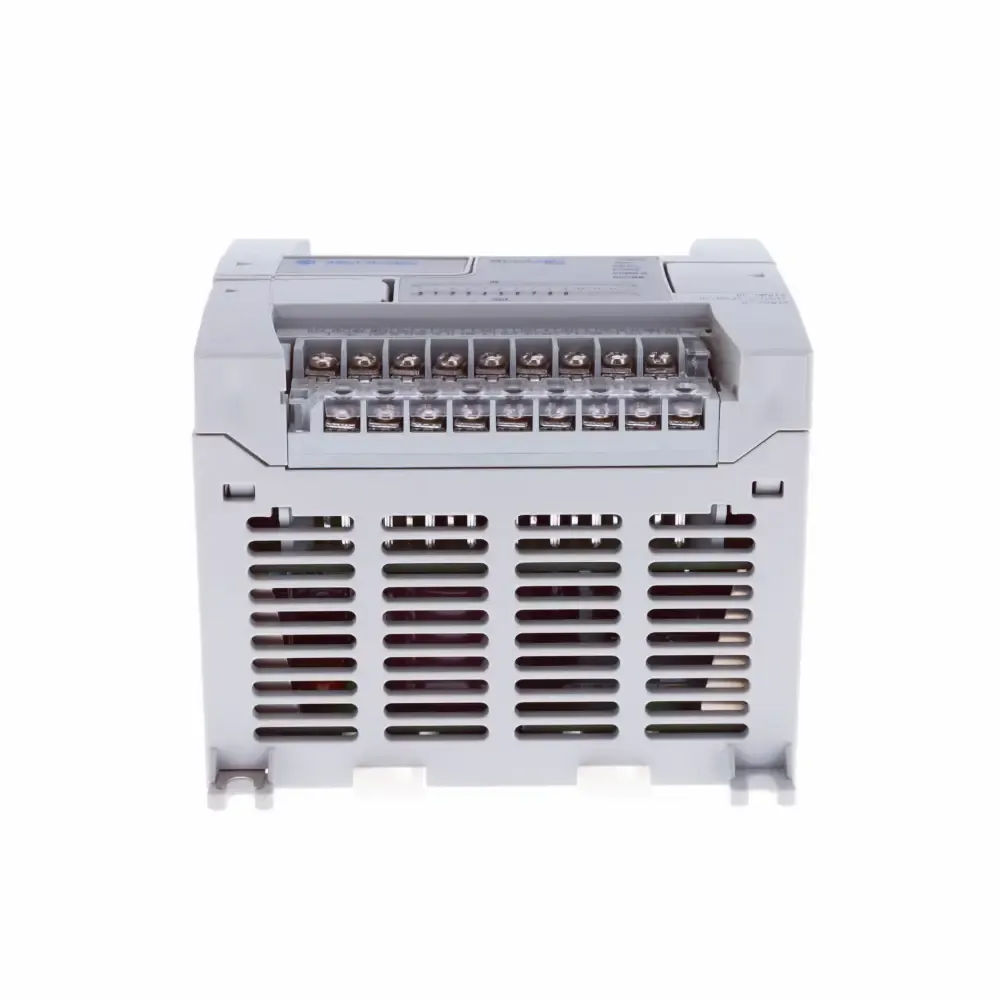

Allen-Bradley 1762-L24BXB MicroLogix 1200 24 Point Controller

Name: Allen-Bradley 1762-L24BXB MicroLogix 1200 24 Point Controller
Brand: Allen-Bradley
SKU: 1762-L24BXB
Price: 480 USD
Availability: InStock

Free Worldwide Shipping

Same-day Fast Dispatch

2-Year Warranty

Secure Payments

Description

The Allen-Bradley 1762-L24BXB is a MicroLogix 1200 Programmable Logic Controller (PLC). This controller has Ten (10) standard 24VDC inputs, Four (4) Fast 24VDC inputs, Five (5) relay, Four (4) 24VDC FET and One (1) high-speed output. For communication, it has an embedded 8-pin mini-DIN communication port supporting DF1, DH-485, ASCII, MODBUS protocols. This controller is powered by an external 24VDC supply voltage.

Technical Specifications

Brand	Allen-Bradley
Series	MicroLogix 1200
Part Number	1762-L24BXB
Manufacturer	Rockwell Automation
Power Supply Usage	40W
Power supply inrush current	120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms
Ambient Operating Temp	0 to 55 degrees Celsius
Supported Protocols	DF1, DH-485, ASCII, MODBUS
Communication Ports	One (1) 8-Pin mini-DIN serial port;
Load Current	10A, minimum
Mechanical Cycles	20000000
Relay Contact Rating	24-125VDC; 120-240VAC
Output Circuit Type	Relay; FET
Input Circuit Type	24 VDC sink / source
No. of Outputs	Five (5) relay; Four (4) 24V dc FET; (1) high-speed 24V dc FET
No. of Inputs	Ten (10) 24V dc; (4) fast 24V dc
Power Supply	24VDC
Dimensions	Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm
Module Type	Programmable Controller
Input Power	24V DC
Power Supply Output	400 or 350 milliamps
Operating Frequency	0-20 kilohertz

Information About 1762-L24BXB

The 1762-L24BXB is a part of the Allen-Bradley MicroLogix 1200 series of programmable logic controllers (PLCs), manufactured by Rockwell Automation. This model is designed for small to medium-sized industrial automation applications and is widely used due to its compact size, versatility, and ease of integration into control systems.

Key Specifications:

Processor:
- MicroLogix 1200 controller with a built-in processor.
- Provides basic programming and control functionality.
- Supports the RSLogix 500 programming environment.
I/O Configuration:
- Input Channels:
  - 14 digital inputs.
  - Voltage range: 24V DC.
- Output Channels:
  - 10 digital outputs.
  - Output type: Relay outputs for flexibility with AC and DC loads.
Power Supply:
- Requires a 24V DC power supply.
Communication:
- Equipped with an RS-232/RS-485 communication port for device integration.
- Supports DF1, DH-485, Modbus RTU, and ASCII protocols.
Programming Software:
- Uses RSLogix 500 or Connected Components Workbench (CCW) for configuration and programming.
Memory:
- Program memory: Up to 4 KB.
- Data memory: Non-volatile memory for storing configurations and application logic.
Features:
- Compact size for panel-mounted or DIN-rail installation.
- Expandable I/O capability with additional 1762 I/O modules.
- LED indicators for I/O and communication status.
- High-speed counters and timers for precise process control.

Applications:

The 1762-L24BXB is suitable for various automation tasks in industries like:

Manufacturing
Packaging
Material handling
Small machine control
