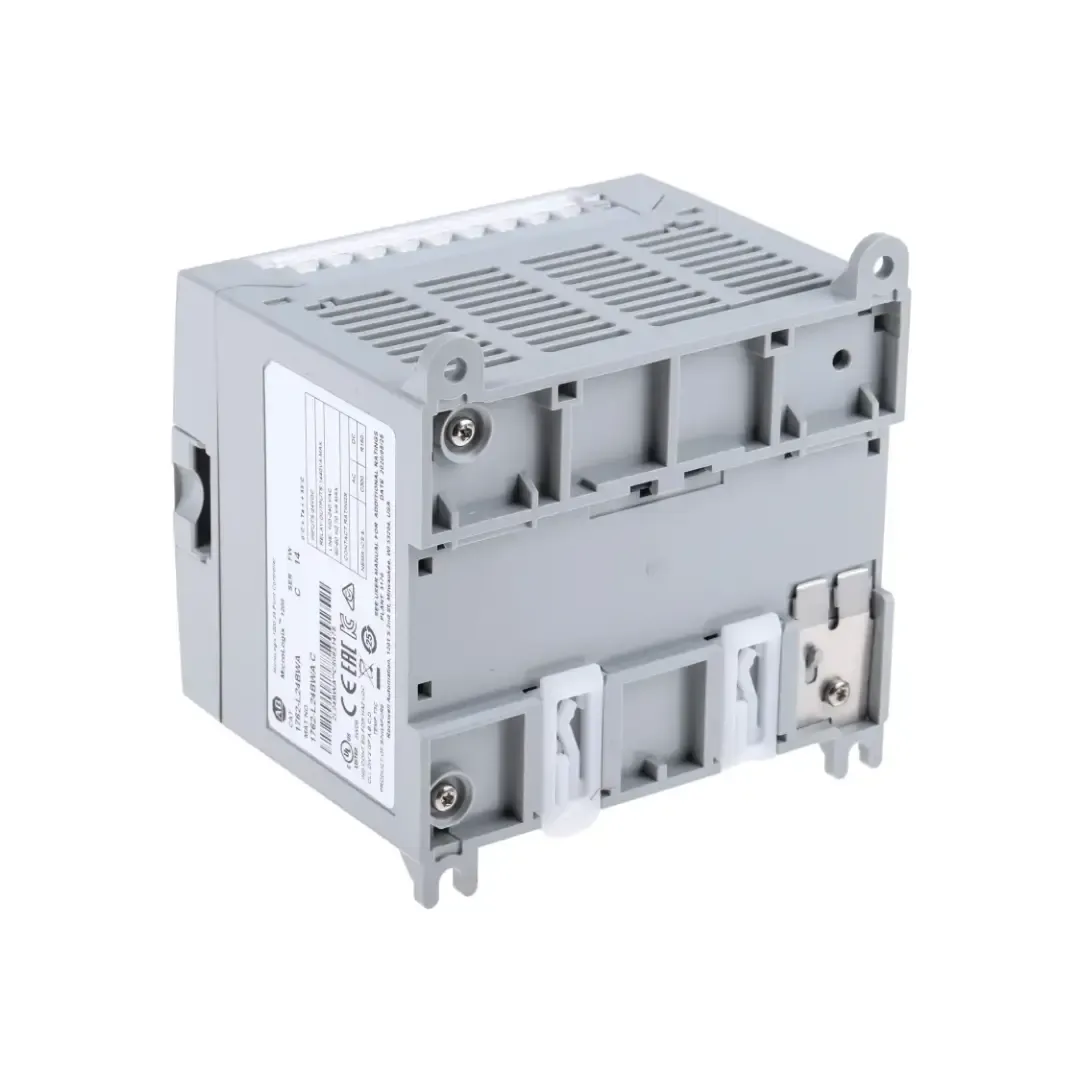

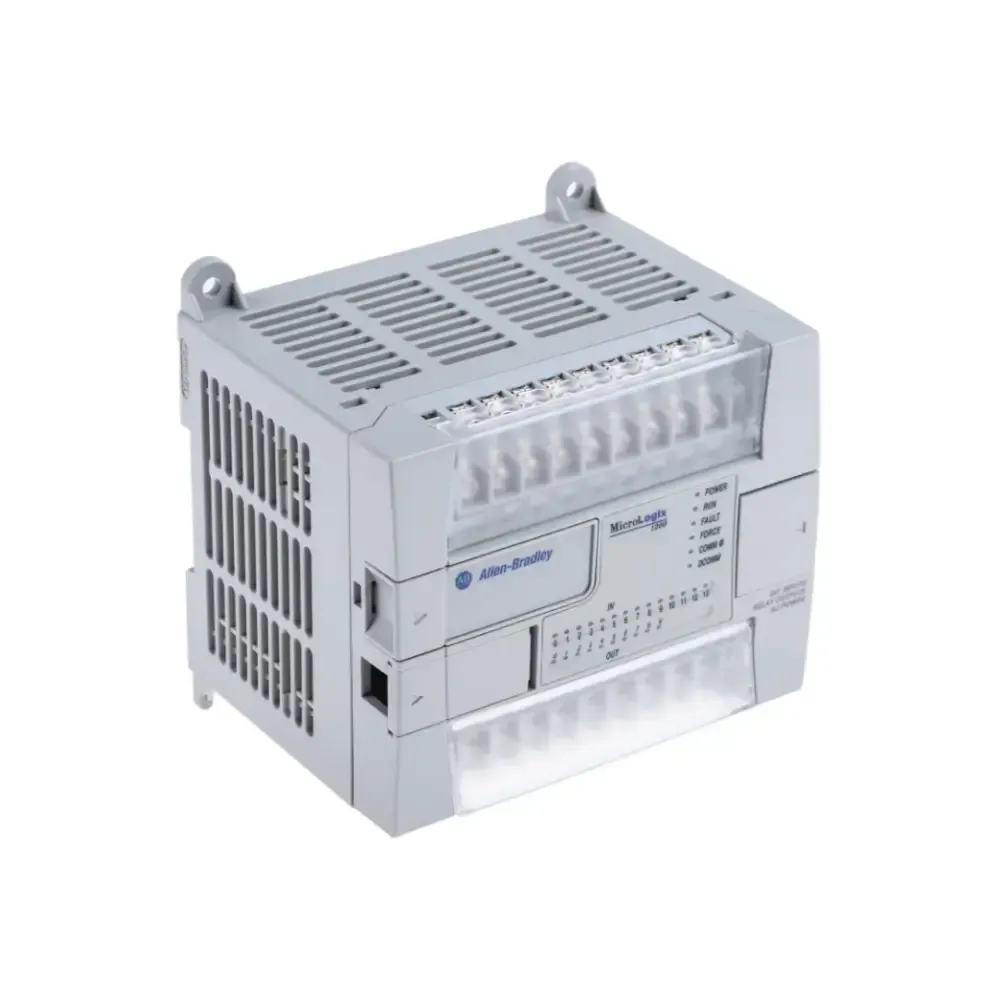

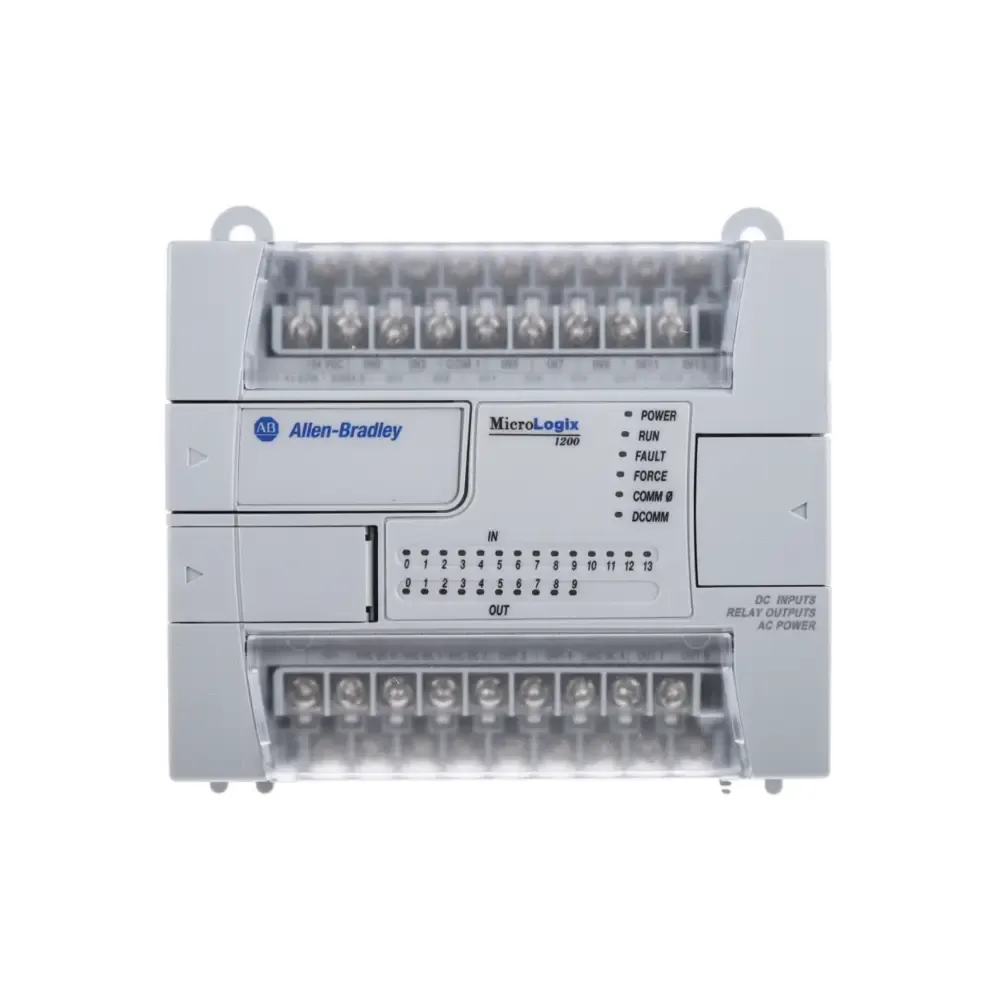

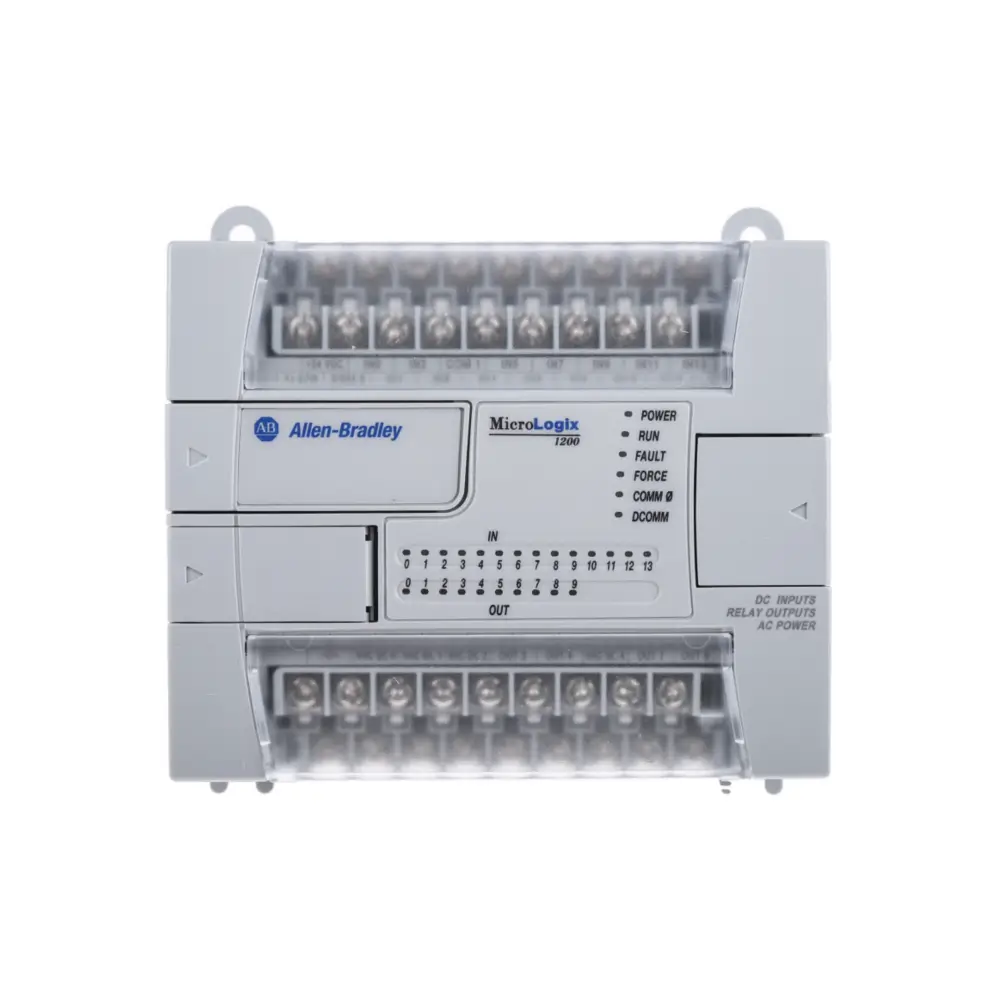

Allen-Bradley 1762-L24BWA MicroLogix 1200 24 Point Controller

Name: Allen-Bradley 1762-L24BWA MicroLogix 1200 24 Point Controller
Brand: Allen-Bradley
SKU: 1762-L24BWA
Price: 415 USD
Availability: InStock

Free Worldwide Shipping

Same-day Fast Dispatch

2-Year Warranty

Secure Payments

Description

The Allen-Bradley 1762-L24BWA is a MicroLogix 1200 controller with 24 I/O points, including 14 digital DC inputs and 10 relay outputs. It operates on 120–240 VAC input power and supports both DIN rail and panel mounting.

Technical Specifications

Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Part Number	1762-L24BWA
Input Power	120 to 240 Volts AC
Inputs	10 rated at 24 Volts DC and 4 Fast rated at 24 Volts DC
No. of Inputs	14
Outputs	10 Relay
Input Circuit Type	24 Volts DC Sink/Source
Relay Contact Rating	24-125VDC; 120-240VAC
Mechanical Cycles	20,000,000
Dimensions	Height: 90 mm, 104 mm (with DIN latch open) Width: 110 mm Depth: 87 mm
Load Current	10A, minimum
Ambient Operating Temp	0 to 55 degrees Celsius
Heat Dissipation	15.7 W
Power supply inrush current	120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms
Series	MicroLogix

Information About 1762-L24BWA

The 1762-L24BWA is part of the Allen-Bradley MicroLogix 1200 family, designed for compact automation systems that require reliable control and flexible installation. It provides 14 digital inputs rated for 24 VDC sink/source wiring, including 4 high-speed inputs for fast response applications, and 10 relay outputs rated for 24–125 VDC or 120–240 VAC. The controller integrates an RS-232 communication port supporting DF1, DH485, Modbus, and ASCII protocols, enabling connectivity with HMIs, drives, and other devices. It features a mechanical relay lifespan of up to 20 million cycles and supports expansion I/O modules to scale with application needs. With dimensions of 90 × 110 × 87 mm and a shipping weight of 2 lbs, it fits into tight enclosures while providing dependable performance in operating temperatures from 0 to 55 °C.

Key Features:

I/O Configuration: Fourteen (14) 24 VDC sink/source inputs including 4 high-speed, and ten (10) relay outputs for flexible control.
Power Supply: Operates with 120–240 VAC input power for direct connection in industrial systems.
Relay Output Rating: Supports 24–125 VDC and 120–240 VAC loads with mechanical lifespan of 20 million cycles.
Communication: Integrated RS-232 port with DF1, DH485, Modbus Master/Slave, and ASCII protocol support.
Expansion Capability: Compatible with additional I/O modules to extend functionality.
Safety Feature: Includes Master Control Relay (MCR) for emergency machine shutdown.
Compact Size: Measures 90 × 110 × 87 mm and weighs 2 lbs for installation in limited spaces.
Mounting Options: Supports both DIN rail and direct panel mounting for flexible installation.
Environmental Ratings: Operates at 0–55 °C ambient temperature with EMC compliance to EU Directive 89/336/EEC.
Heat Dissipation: Rated at 15.6 W, ensuring stable operation under continuous use.

The 1762-L24BWA delivers the reliability and precision required for compact automation and machine control applications.

Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Allen-Bradley 1762-L24BWA MicroLogix 1200 24 Point Controller

Our Secure Packaging & Fast Delivery Process

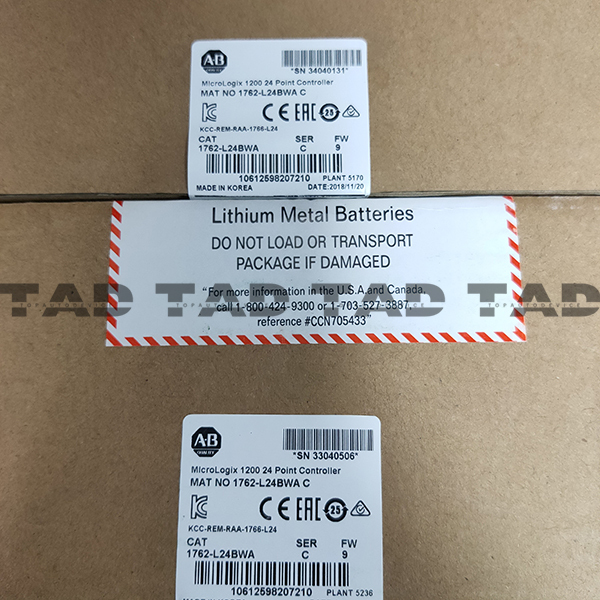

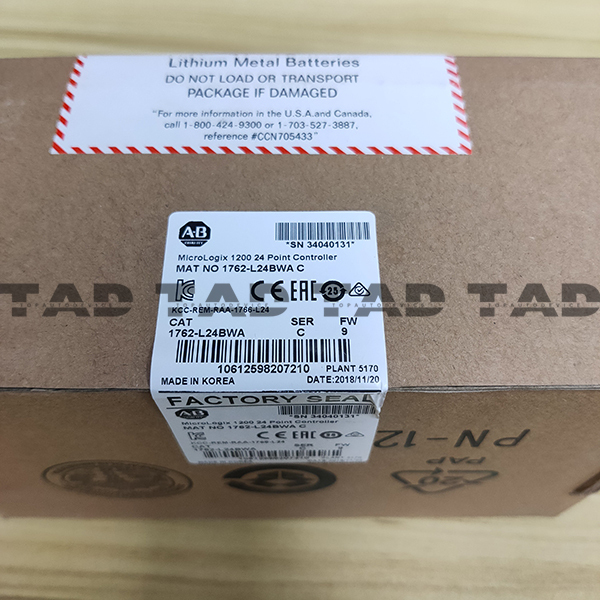

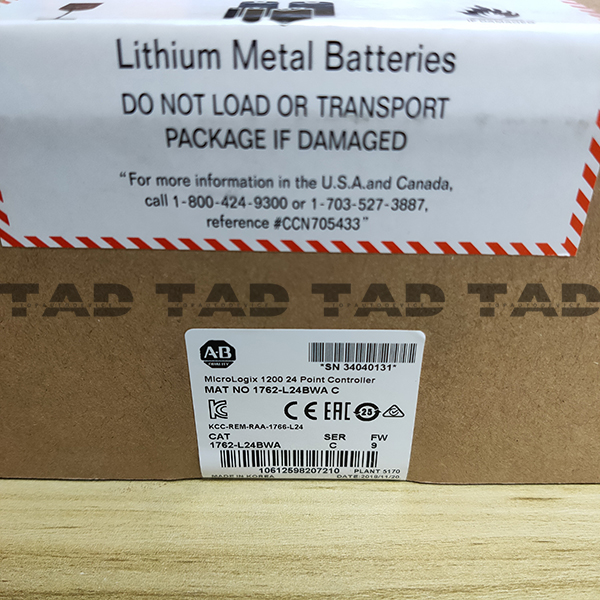

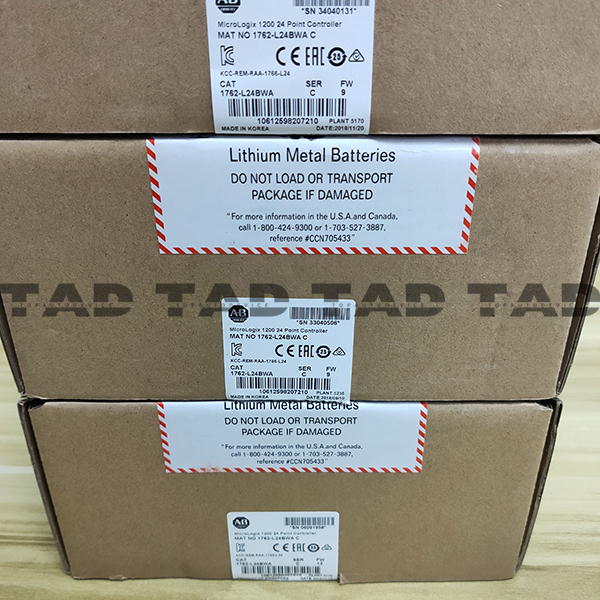

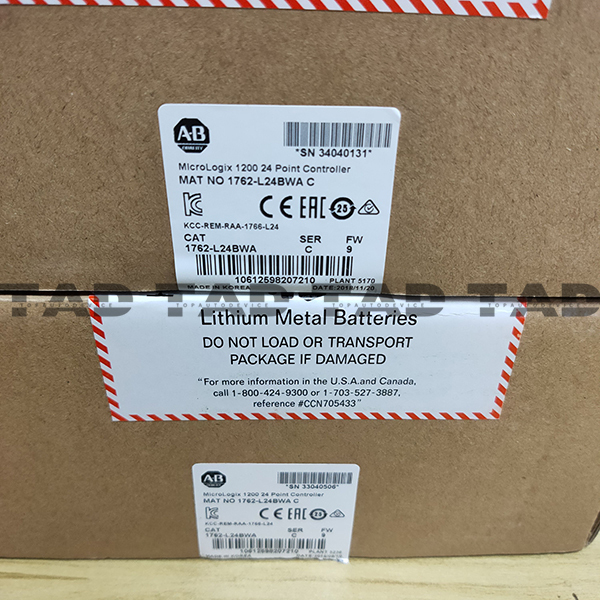

{"default":"Factory-sealed Allen-Bradley PLC boxes prepared for DHL shipping"}
