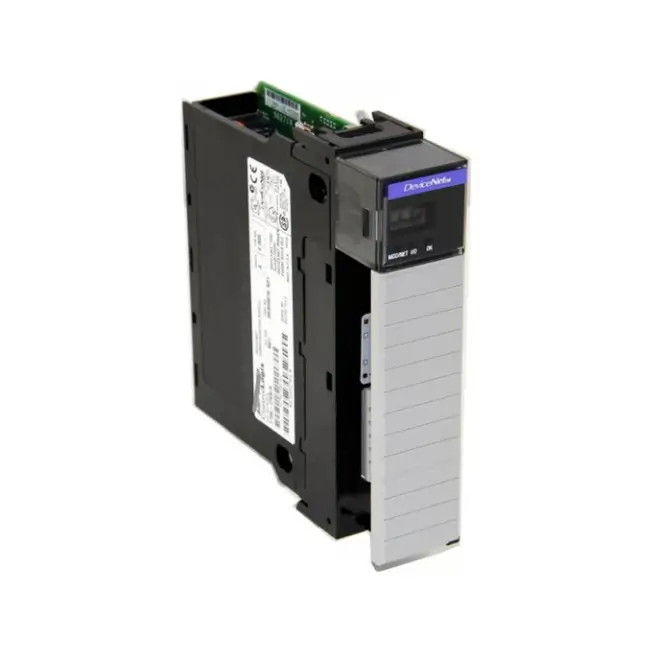

Allen-Bradley 1756-DNB ControlLogix DeviceNet Comms Module

Description

The Allen-Bradley 1756-DNB is a ControlLogix DeviceNet scanner module designed for connecting DeviceNet networks to a ControlLogix system. It supports DeviceNet communication rates of 125, 250, or 500 Kbps and provides reliable data exchange between controllers and DeviceNet devices.

Technical Specifications

Information About 1756-DNB

The 1756-DNB is part of the Allen-Bradley ControlLogix family, engineered to function as a bridge between DeviceNet nodes and the controller. It supports up to 64 DeviceNet nodes with addresses from 00 to 63, enabling large-scale device connectivity. This module communicates at selectable baud rates of 125, 250, and 500 Kbps to adapt to different network demands. It consumes 580 mA at 5 VDC and 3 mA at 24 VDC from the backplane, with a maximum power dissipation of 5.8 W. The module provides continuous insulation voltage of 30 V, ensuring reliable protection, and it operates in a temperature range of 0–60 °C. The 1756-DNB is installed in any slot of a ControlLogix chassis and is supported only by Logix5550 controllers, making it a key component in integrating DeviceNet into Logix-based control systems.

Key Features:

• Communication Rates: Supports DeviceNet speeds of 125, 250, or 500 Kbps, ensuring adaptability for various network designs.

• Node Capacity: Handles up to 64 nodes with address range 00–63, allowing wide device integration.

• Module Role: Functions as a scanner to collect input data, send output commands, download configuration files, and monitor device status.

• Controller Compatibility: Specifically designed for use with Logix5550 controllers within the ControlLogix platform.

• Power Requirements: Draws 580 mA at 5 VDC and 3 mA at 24 VDC, with a maximum dissipation of 5.8 W for efficient operation.

• Thermal Ratings: Generates 19.8 BTU/hr, supporting stable thermal performance in industrial environments.

• Electrical Protection: Rated for 30 V continuous insulation voltage, enhancing system safety.

• Installation: Mounts in any slot of a ControlLogix chassis, offering flexibility in system layout.

The 1756-DNB delivers the reliability and precision required for bridging DeviceNet devices with ControlLogix controllers in industrial automation.
