Description

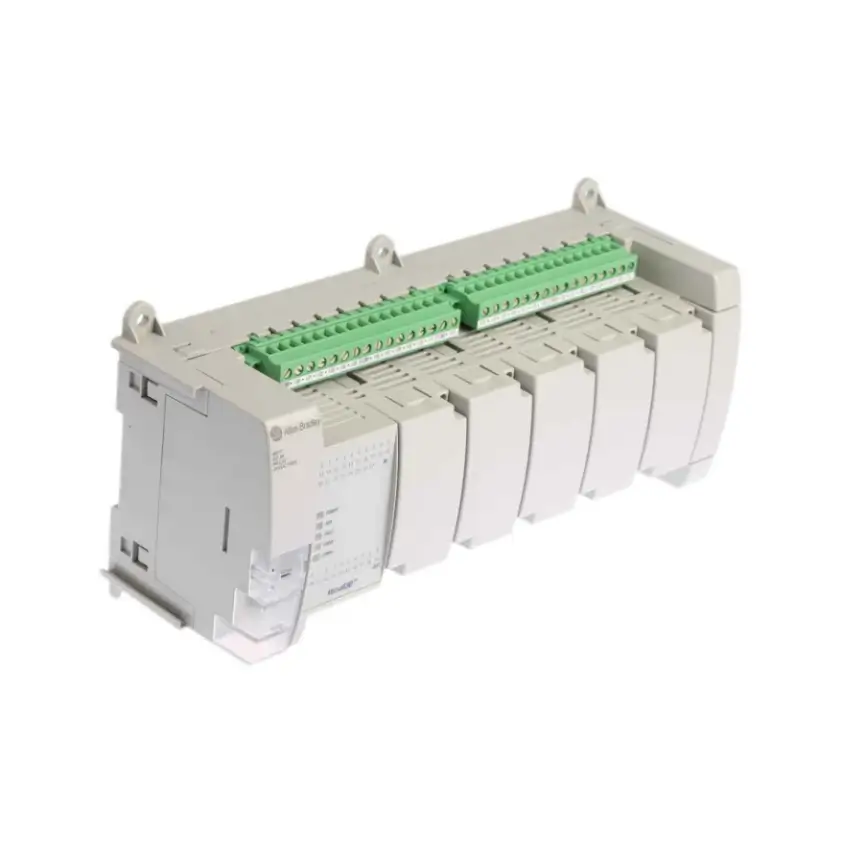

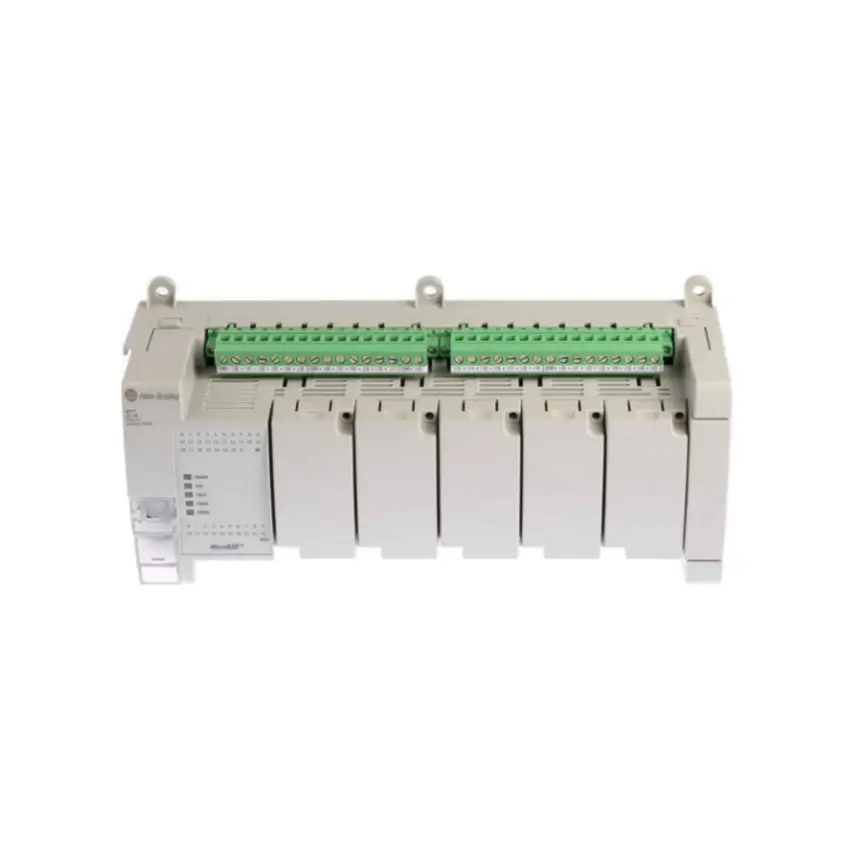

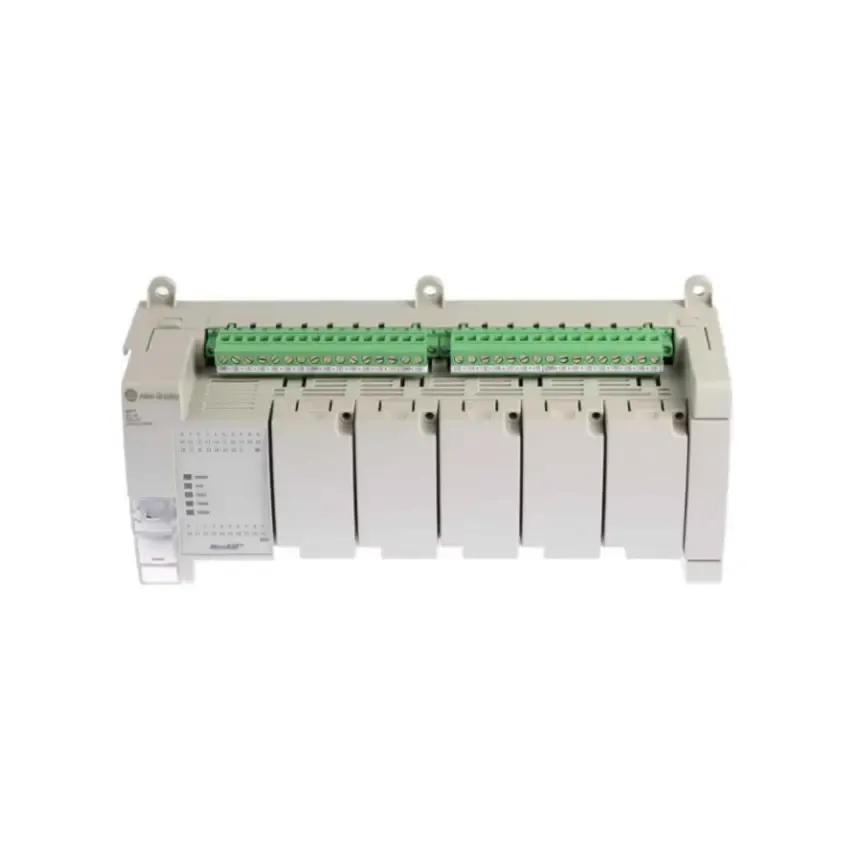

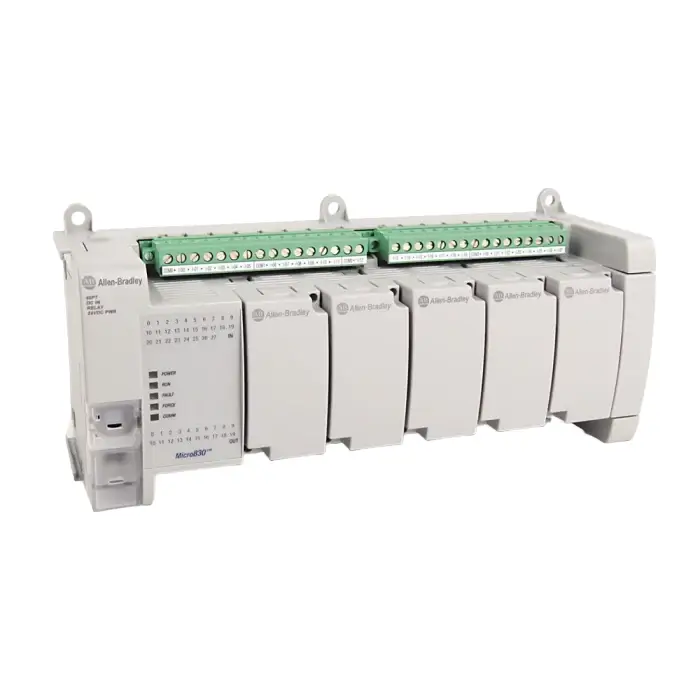

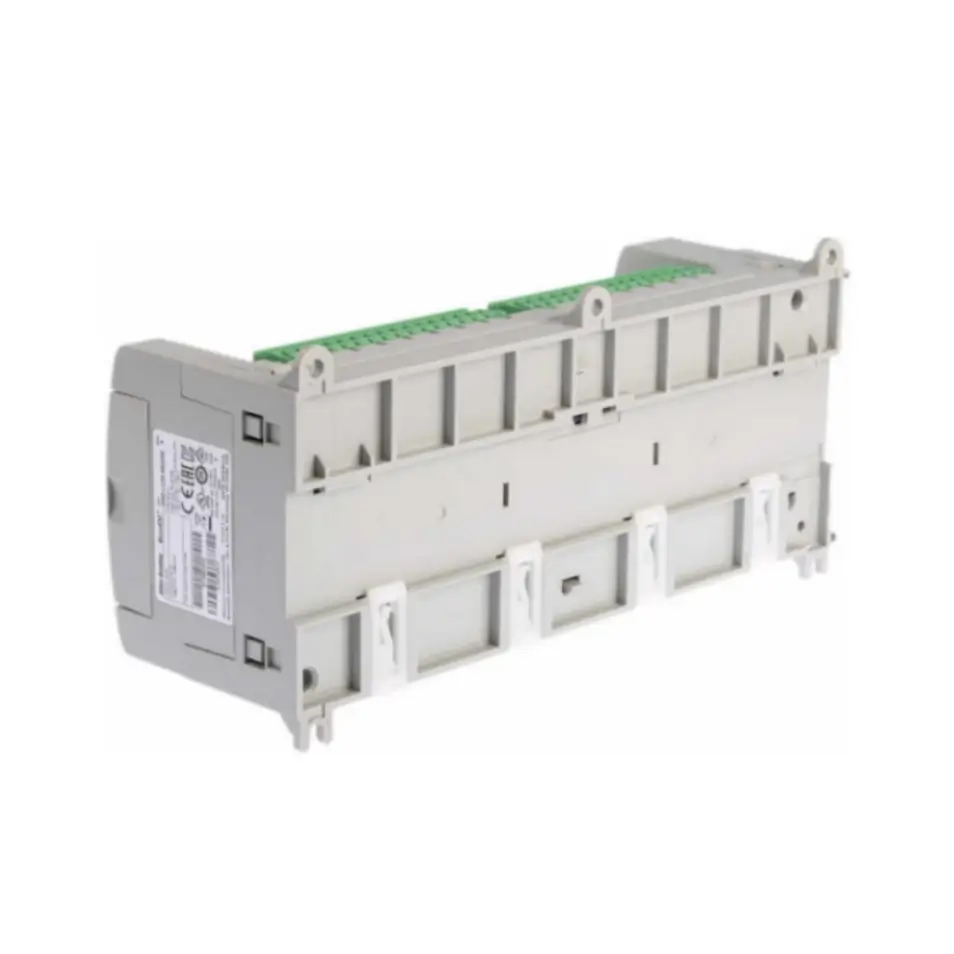

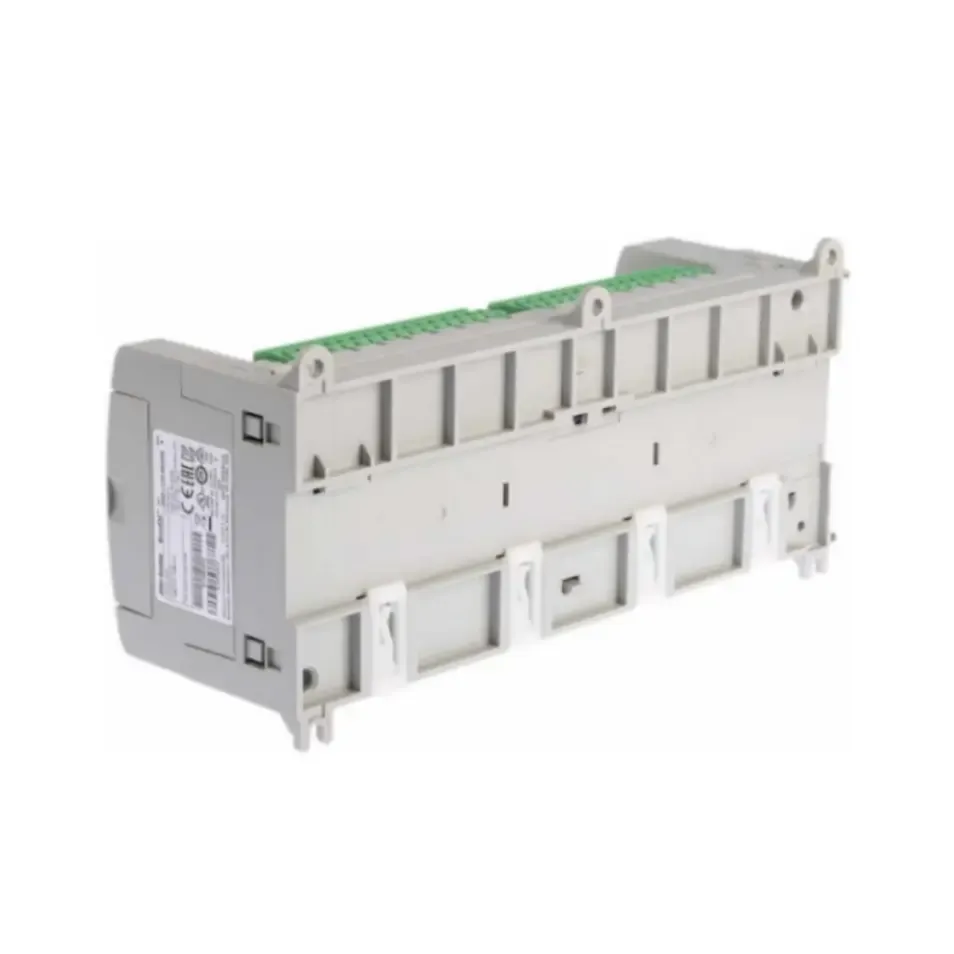

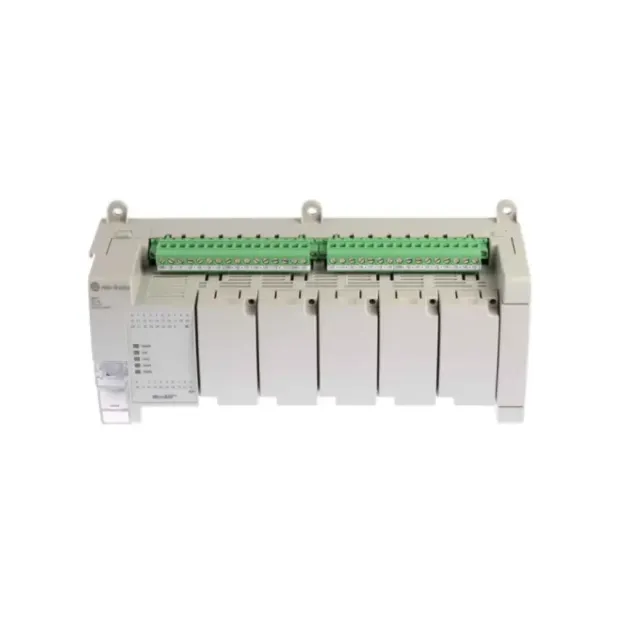

The Allen-Bradley 2080-LC30-48QWB Micro830 Controller is a comprehensive system incorporating a base unit and plug-in options. It features 28 inputs supporting both 24V DC and AC, facilitating versatile connectivity. Moreover, the system is equipped with 20 digital relay outputs, providing precise control over various industrial processes. With a 24V DC power supply, the controller ensures reliable operation in industrial environments requiring robust performance and flexibility in input and output configurations.
Technical Specifications
|
Part #
|
2080-LC30-48QWB
|
|
Manufacturer
|
Allen Bradley
|
|
Category
|
PLCs/Machine Control
|
|
Subcategory
|
PLC Module/Rack
|
|
Manufacturer Series
|
Micro830
|
|
Number of Inputs
|
28
|
|
Output Type
|
Digital
|
|
For Use With
|
Micro800 Series
|
|
Input Type
|
Digital
|
|
Voltage Category
|
24 V dc
|
|
Number of Outputs
|
20
|
|
Network Type
|
ModBus
|
|
Kit Included
|
Yes
|
|
Minimum Operating Temp
|
-20°C
|
|
Number of Communication Ports
|
1
|
|
Programming Language Used
|
Function Block, Ladder Logic, Structured Text
|
|
Width
|
230mm
|
|
Length
|
90mm
|
|
Depth
|
80mm
|
|
Memory
|
8 kB
|
|
Programming Interface
|
Operating Panel
|
|
Program Capacity
|
4 kB
|
|
Communication Port Type
|
RS232, RS485
|
|
Dimensions
|
90 x 230 x 80 mm
|
|
Maximum Operating Temp
|
+65°C
|
Information About 2080-LC30-48QWB
The Allen-Bradley 2080-LC30-48QWB Micro830 Controller is designed for industrial control applications requiring precise automation. It serves as the core component of the Micro 830 system, offering a comprehensive set of features and compatibility with various plug-in options.
This controller integrates 28 inputs, which accept both 24V DC and 24V AC signals, accommodating diverse input configurations common in industrial environments. The system also features 20 digital relay outputs, enhancing versatility in controlling external devices and machinery.
Operating on a 24V DC power supply, the Micro830 controller ensures reliable performance and compatibility with standard industrial power systems. This voltage specification aligns with common power standards in industrial settings, ensuring seamless integration with existing infrastructure.
The Micro830 controller is built to meet the demands of industrial automation, offering robust functionality in a compact form factor. Its 28 inputs and 20 digital relay outputs provide ample capacity for controlling and monitoring various processes and equipment.

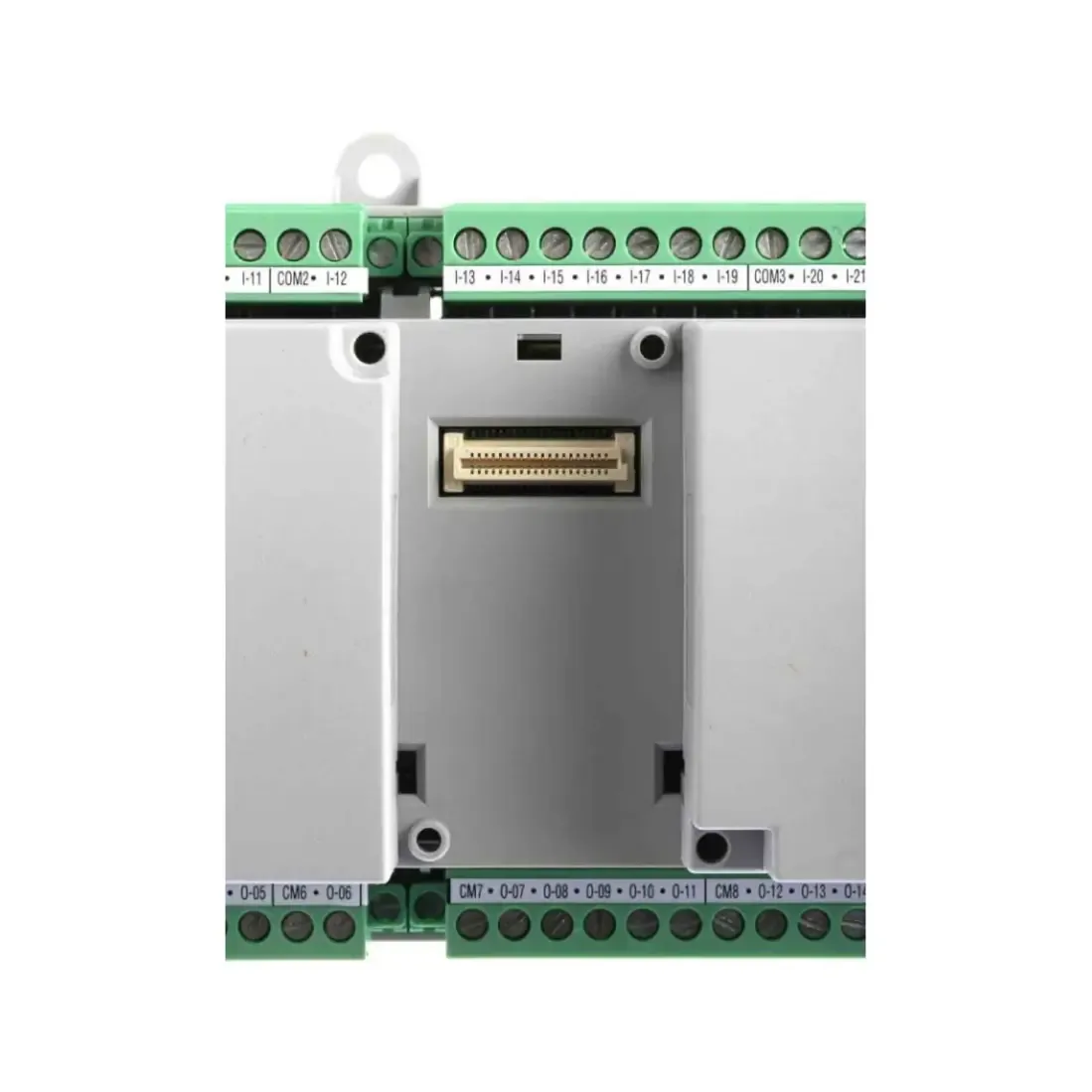

Designed to streamline installation and configuration, the Micro830 controller comes with a base unit and supports plug-in options, enabling users to customize the system according to specific application requirements. This flexibility enhances adaptability and scalability, making the controller suitable for a wide range of automation tasks.
With its 24V DC/AC input compatibility, the Micro830 controller accommodates diverse input signal types commonly encountered in industrial control systems. This versatility ensures compatibility with a wide range of sensors, switches, and other input devices used in industrial automation applications.
The Micro830 controller features a durable construction and is engineered to withstand harsh industrial environments. Its robust design ensures reliable operation even in challenging conditions, making it suitable for use in diverse industrial settings.
Manufacturer Information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
